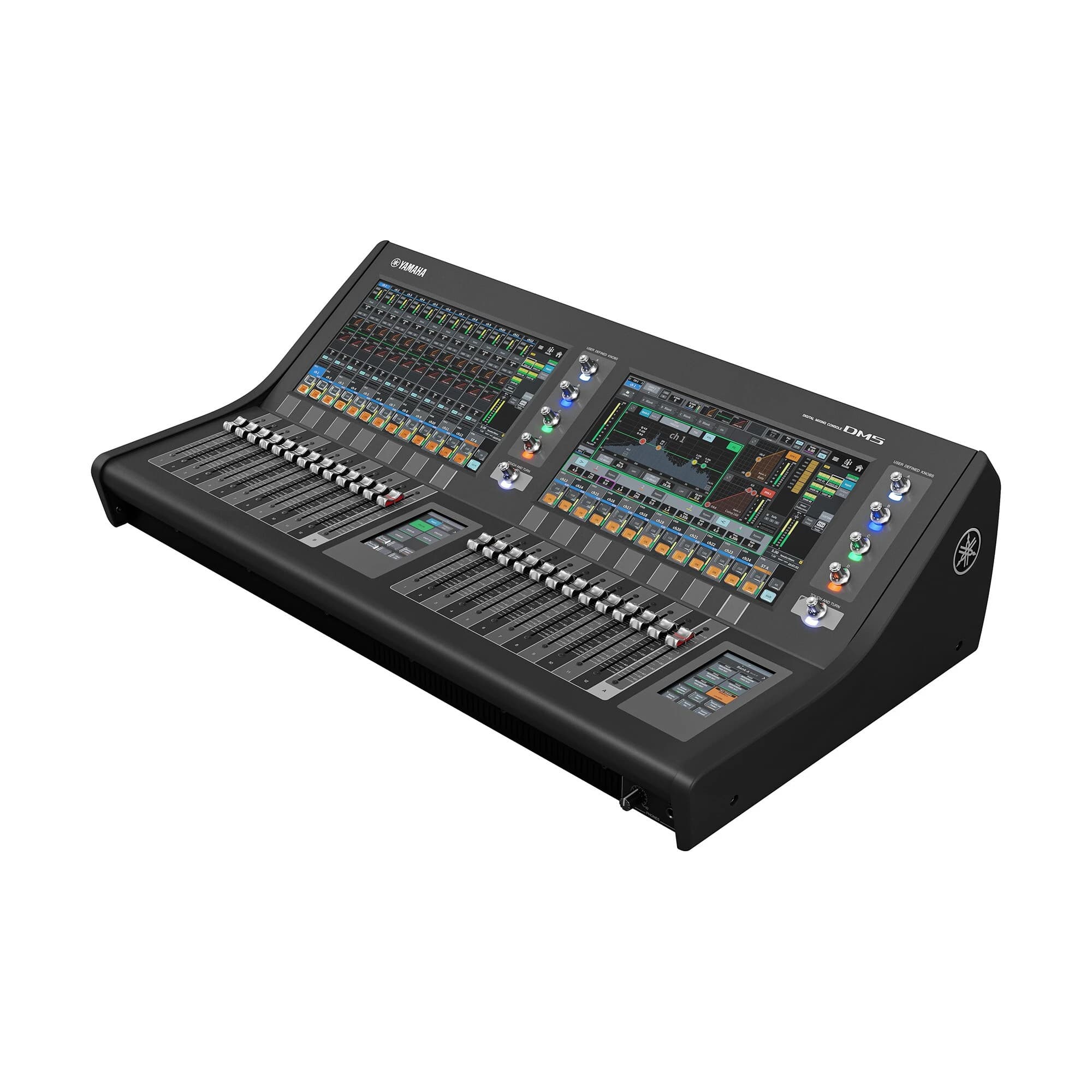

In our hire fleetYamaha DM5 Digital Mixing Console
Hire the Yamaha DM5 digital mixing console for live sound, conferences and events, with 60 input channels, 26 faders, 32 local inputs and built-in Dante.
- 60 input channels & 26 faders
- 32 local inputs / 16 outputs
- 64 × 64 Dante audio
- Dual 13.3-inch touchscreens
From £225 per dayWhat a quote includes →
Enquire about this kit
- Delivery & collection
- Technician support
Key specifications
- Model
- Yamaha DM5
- Input mixing channels
- 60 mono
- Faders
- 26
- Local analogue inputs
- 32
- Local analogue outputs
- 16
- Dante audio
- 64 inputs / 64 outputs
- Mix buses
- 24
- Matrix buses
- 12
- Stereo buses
- 2
- Main displays
- Two 13.3-inch multi-touch screens
- Utility displays
- Two 4.3-inch multi-touch screens
- USB audio interface
- 18 inputs / 18 outputs
- Expansion
- One PY card slot; optional cards specified separately
- Dimensions (W × H × D)
- 826 × 235 × 441mm
- Net weight
- 21.5kg
Full product details
The Yamaha DM5 gives event sound engineers hands-on control of speech, music and playback from a compact digital console. Its 60 mono input channels and 26 faders suit conferences, awards ceremonies, live performances and hybrid events where several sources need to be managed together.
With 32 analogue inputs and 16 analogue outputs on the console, the DM5 can handle many event setups directly. Built-in 64-in/64-out Dante networking supports compatible stageboxes and networked audio systems. The mix architecture provides 24 mix buses, 12 matrices and two stereo buses for routing to the main PA, monitors and other destinations.
Two 13.3-inch touchscreens and two 4.3-inch utility screens put channel control and custom functions within reach. The USB audio interface offers 18 inputs and 18 outputs for compatible recording and playback workflows. Tell us your required input list, stagebox connections and recording setup so we can prepare the right hire package.
The starting rate covers the console. External stageboxes, microphones, PA systems, network equipment and any optional expansion cards or software licences are specified separately. Ask about our Yamaha Rio3224-D3 stagebox hire and sound equipment hire range when building your system.
Kudos AV supplies Yamaha DM5 hire from Uxbridge for events across London and the UK. Request a quote with your dates, venue and audio requirements; delivery, setup and sound engineer support can be included.
Related products
Hire questions
Yamaha DM5 Digital Mixing Console hire FAQs
01Is this the full-size Yamaha DM5 or the DM5 Compact?
This listing is for the full-size Yamaha DM5, with 26 faders, 60 mono input mixing channels, 32 local analogue inputs and 16 local analogue outputs.
02Can I hire a stagebox with the Yamaha DM5?
Yes, ask Kudos AV to include a suitable stagebox and cabling in your quotation. The DM5 supports compatible Dante audio devices; tell us your channel count and network requirements so the complete system can be checked.
03Are optional Yamaha cards and licences included?
Optional PY expansion cards and additional software licences are not included in the standard console listing. Any required options must be confirmed and itemised in your hire quotation.
04How much does Yamaha DM5 hire cost?
The current indicative starting day rate is shown in the Hire pricing section. It is for dry hire of the console, excluding VAT. Multi-day hire, delivery, stageboxes, additional equipment and engineer support are quoted for your event.
