In our hire fleetd&b audiotechnik Q-SUB

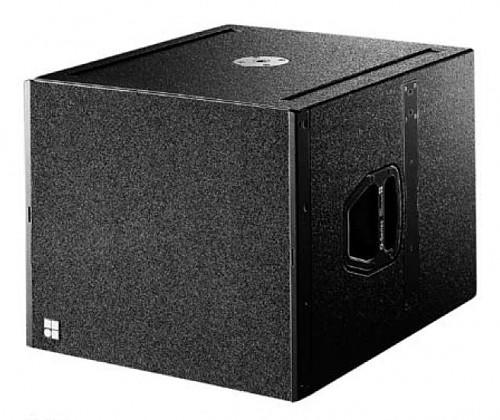

The subwoofer built for the d&b Q-Series: an 18 inch high-excursion driver in a bass-reflex cabinet, flown or ground-stacked with Q1 and Q7, driven by the D12 amplifier. Concert and conference low end from Kudos AV, London and UK.
- Professional PA loudspeaker
- Matched amplification & processing
- Prepped, tested & PAT certified
- Conferences, live music & events
From £30 per dayWhat a quote includes →
Enquire about this kit
- Delivery & collection
- Technician support
Key specifications
- Type
- actively driven bass-reflex subwoofer
- Driver
- 18 inch high-excursion
- Frequency response
- 39 Hz to 115 Hz
- Amplification
- d&b D12 with SenseDrive
- Rigging
- Q-Series compatible, flown or ground-stacked with Q1 and Q7
- Stand mount
- M20 threaded flange in top panel
- Connectors
- 2 x EP5 or NL4 wired in parallel
- Cabinet
- marine plywood, impact-resistant finish, two handles, four wheels
- Coverage
- London, South East and UK-wide from Uxbridge
Full product details
The d&b Q-SUB is the subwoofer that belongs under a Q-Series system. An 18 inch high-excursion driver in a low-compression bass-reflex cabinet, it is mechanically compatible with the Q1 and Q7, so it can fly in the same array or ground-stack beneath it, and it is driven by the d&b D12 amplifier with SenseDrive control.
What it is for
- Low end for Q1 line arrays at conferences, awards and concerts
- Ground stacks under Q7 point-source rigs in ballrooms and marquees
- Bands, DJs and playback where the system has to move air, not just be heard
- Flown sub arrays where floor space is tight
How it is used
Ten rigging sockets in the front grille and side panels take Q-Series flying hardware, so the Q-SUB flies above or below Q1 cabinets in a single column, or stacks on the floor with an M20 flange on top for a pole-mounted Q7. Two runners on the base sit into recesses on the top panel so stacks stay put. Cabinets are marine plywood with an impact-resistant finish, two handles and four heavy-duty wheels.
What it pairs with
The d&b Q1 line array cabinet, the D12 amplifier, and for extended low end at larger shows the B2-SUB. Our engineers design and tune the system for the room as part of a sound production hire.
Delivery and support
Delivery, collection and technical support are part of every hire across London, the South East and the UK. Dry hire, or supplied with an engineer to rig, tune and mix.
Related products
Hire questions
d&b audiotechnik Q-SUB hire FAQs
Can the Q-SUB be flown?+
Yes. It uses the same rigging components as the Q1 and Q7, so it flies in the same array or ground-stacks beneath it.
What amplifier does the Q-SUB need?+
The d&b D12, which provides SenseDrive control. We supply it with the hire and our engineers set the system up.
How many Q-SUBs do I need?+
It depends on the room and the programme. Tell us the venue, the audience size and whether it is speech, a band or a DJ and we will design the system.
