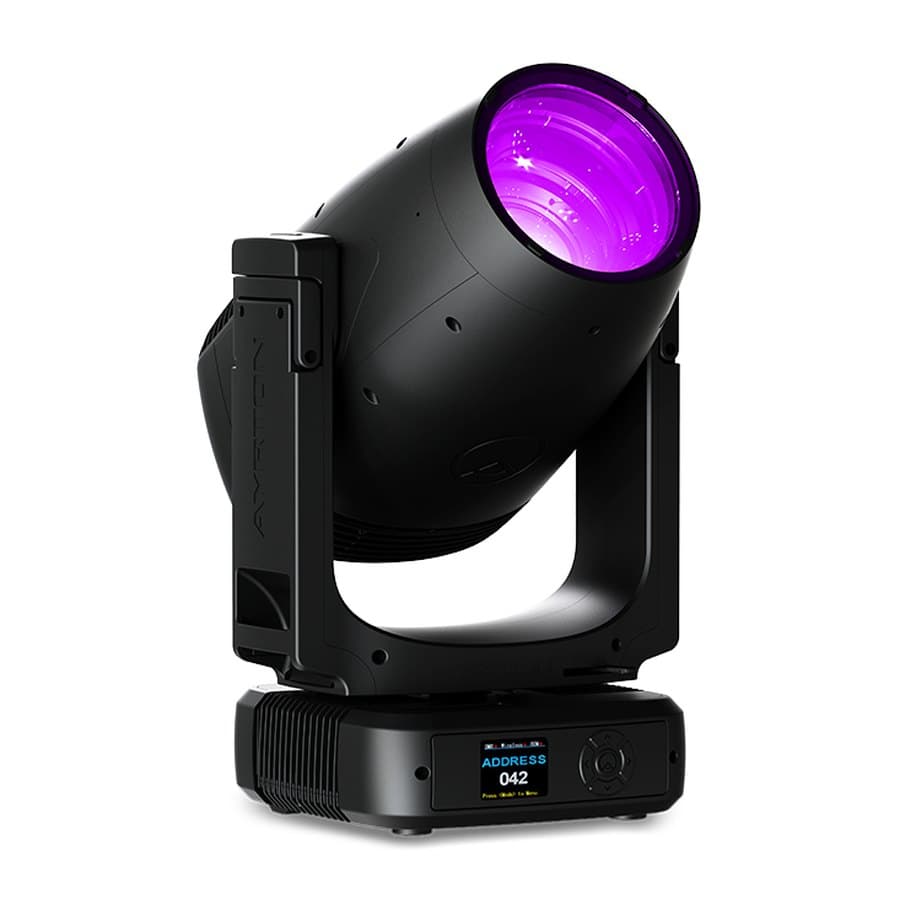

In our hire fleetAyrton RawBeam 350
Ayrton RawBeam 350: an IP65 laser source beam with a 160 mm front lens, over 1,340,000 lux at 10 metres, a 40:1 zoom and infinite pan and tilt, at 25.4 kg. Aerial beams indoors or out. Hire from Kudos AV, London and UK.
- High output moving head
- Colour, gobos & effects
- Reliable & industry standard
- Ideal for tours, events & installations
From £120 per dayWhat a quote includes →
Enquire about this kit
- Delivery & collection
- Technician support
Key specifications
- Type
- IP65 laser source beam moving head
- Output
- over 1,340,000 lux at 10 metres
- Colour temperature
- 6800 K, CRI over 68
- Source life
- up to 12,000 hours to L70
- Front lens
- 160 mm
- Optics
- 13 element system, 40:1 zoom ratio
- Zoom
- 1.1 to 18 degrees and 2.2 to 45 degrees
- Colour
- CMY mixing, gradient CTO 3000 to 6800 K, 15 colour wheel, RGB and CMY animation section, CTB filter
- Gobos
- 10 rotating quartz, 25 fixed metal, 4 beam reducers, animation wheel
- Prisms
- two sets of three combinable rotating image multiplying prisms
- Frost
- two filters, 1 and 5 degrees
- Strobe
- 1 to 25 flashes per second
- Pan and tilt
- infinite on both axes
- Protection
- IP65, rated for outdoor and saline environments
- Control
- DMX512, RDM, Art-Net, sACN, wireless CRMX, one mode of 43 channels
- Power
- 100 to 240 V, 50/60 Hz, 660 W maximum, 550 W typical at 230 V
- Dimensions
- 339 x 592 x 297 mm
- Weight
- 25.4 kg
- Minimum usage distance
- 25 metres
- Coverage
- London, South East and UK-wide from Uxbridge
Full product details
The Ayrton RawBeam 350 is a laser source beam fixture built to do what a discharge beam used to do, without the lamp. A 160 mm front lens throws over 1,340,000 lux at 10 metres, and the 13 element optical system carries a 40:1 zoom that runs from a 1.1 degree needle out to a 45 degree wash without swapping between a beam mode and a spot mode. It is IP65 rated and weighs 25.4 kg, so the same fixture goes on an outdoor roof or into a ballroom rig.
What it is for
- Aerial beam looks over a dancefloor, a stage or an audience
- Outdoor builds and festival roofs where the rig has to take weather
- Awards and gala reveals where a tight beam has to cut through haze
- Concert and party rigs that need volume from a small fixture count
- Venue takeovers where weight and truss loading matter
How it is used
Pan and tilt are both infinite, so the fixture keeps rotating rather than running out of travel mid effect. Colour is CMY mixing with a gradient CTO on discs, correcting from 6800 K down to 3000 K, alongside a wheel of 15 complementary colours, a multi colour RGB and CMY animation section and a CTB filter. Graphics come from 10 rotating quartz gobos and 25 fixed metal gobos, four beam reducers and an animation wheel, and those run through two sets of three combinable rotating prisms for layered aerial effects. Two frost filters, 1 and 5 degrees, take it from a hard beam to a soft wash. Control is a single 43 channel mode over wired DMX, Art-Net, sACN or wireless CRMX, and maximum draw is 660 W. Minimum usage distance is 25 metres, so it wants height or throw.
What it pairs with
Ayrton Perseo Profile for IP65 framing and gobo work, Robe MegaPointe for a second beam position, Robe Spiider for wash and eye candy, and our lighting designers on grandMA or Avolites.
Delivery and support
Delivery, collection and technical support are part of every hire across London, the South East and the UK.
Related products
Hire questions
Ayrton RawBeam 350 hire FAQs
01Can the RawBeam 350 be used outdoors?
Yes. It is IP65 rated and built for outdoor use, including saline coastal environments, so it goes on an open roof without a fixture cover.
02How many do I need over a dancefloor?
Six to eight around a typical marquee or ballroom dancefloor gives full aerial coverage. Tell us the room and the truss positions and we will spec it.
03Does it need haze to work?
For aerial beam looks, yes. A beam fixture only shows its beam in atmosphere, so we bring hazers as part of the lighting package.
04What power does it need?
660 W maximum per fixture, on a 100 to 240 V supply. Our crew brings the distribution and cabling.
05How far does it need to throw?
Ayrton set a minimum usage distance of 25 metres, so it belongs on high truss, a roof or a long throw position rather than close to guests.
