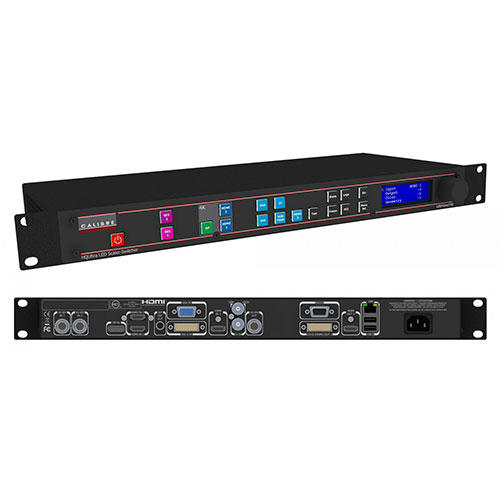

Calibre LEDView730

The larger LEDView, with more input flexibility than the 530, configured to the pixel map of your wall before it ships.

• Perfect scaling with Calibre’s HQUltra low-latency 4K best-in-class proprietary scaling algorithms

• HQUltraFast proprietary typical 0.25 seconds input channel switching technology

• LED Videowall Optimized Scaling with per-edge pixel-accurate custom sizing

• Front panel jog-wheel and LCD display for fast easy set-up in the field

• 10 Video Inputs: 2xHDMI 4K, 1xHDMI HD, 1xDisplayPort 4K, 2x3G-SDI 1xVGA, 1xCVBS, 1xDVI-U (DVI/HDMI & VGA/RGBS/YPbPr)

• 3 Video Outputs: 1xHDMI 4K, 1xDVI/HDMI, 1x3G-SDI

• Picture in Picture ideal for sports scoreboards

• Brightness, Contrast, Saturation controls for all source types

• RGB calibration controls (not 4:2:0 in to 4:2:0 out)

• Flexible Aspect Ratio Conversion

• Full Genlock and Source Lock for in-camera & broadcast applications

• Audio de-embed from HDMI, DisplayPort and 3G-SDI inputs to S/PDIF, re-embed to HDMI outputs

• Multiple outputs for local monitoring of live output feed

• Remote control via webserver or simple API

• Supports LED Videowalls from 4096x2160 to 128x96 pixels

• Optional H.264 HD Streaming Video Input
