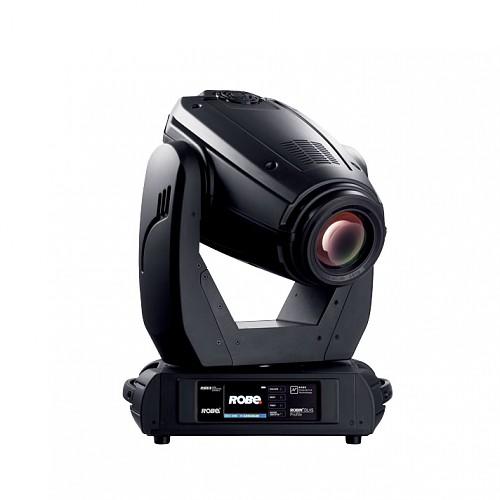

In our hire fleetRobe DL4S Profile
A digitally shuttered LED profile with the colour rendering to sit in front of a camera, which is why it ends up on broadcast and filmed events. Silent enough for a conference room.
- High output moving head
- Colour, gobos & effects
- Reliable & industry standard
- Ideal for tours, events & installations
From £145 per dayWhat a quote includes →
Enquire about this kit
- Delivery & collection
- Technician support
Key specifications
- Light source
- 480 W RGBW LED engine
- Rotating Gobo wheel
- 7 rotating, indexable, replaceable "SLOT&LOCK" metal gobos + open
- Framing shutters
- 4 individually positionable blades plus rotation of the complete frame system +- 45 degrees
- Animation wheel
- Aluminium
- Iris
- Motorized, stepless, pulse effects up to 3 Hz
- Prism
- 3-facet 11 degrees prism rotating in both directions at different speeds
- Frost filter
- Separate, variable
- Motorized zoom
- 10 degrees (gobo position) - 45 degrees (free hole)
- Focus
- Motorized
- Pan
- 540 degrees
- Tilt
- 280 degrees
- User Interface
- Colour Touch Screen - ROBE Navigation System 2 (RNS2), battery backup
- Protocols
- DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
- DMX modes (channels)
- 47, 38, 36
- Programs
- 3-editable, each up to 100 steps
- Stand-alone operation
- Yes
- Pan/Tilt resolution
- 8 or 16 bit
- Movement control
- Tracking and vector
- Rotating gobo wheel positioning
- 8 bit
- Gobo indexing & rotation
- 8 or 16 bit
- Pre-programmed 237 colours including whites (2.700 K, 3.200 K, 4.200 K, 5.600 K and 8.000 K)
- Tungsten lamp emulation
- Whites 2.700 K and 3.200 K
- CTO filter
- Variable
- Colour rainbow effect
- Variable speed
- Colour mixing (Internal 18 bit)
- 8 or 16 bit
- Framing shutters system
- 8 bit
- Animation wheel
- 8 bit
- Iris
- 8 or 16 bit
- Frost
- 8 bit
- Zoom
- 8 or 16 bit
- Focus
- 8 or 16 bit
- Dimmer (Internal 18 bit)
- 8 or 16 bit
- Strobe effect
- Variable speed, 20 flashes per second max.
- Data in/out
- Locking 3-pin & 5-pin XLR, RJ45
- Power connection
- Neutrik PowerCon (cable supplied)
Related products
Hire questions
Robe DL4S Profile hire FAQs
What is the Robe DL4S Profile used for?+
A digitally shuttered LED profile with the colour rendering to sit in front of a camera, which is why it ends up on broadcast and filmed events. Silent enough for a conference room.
Can Kudos AV supply the Robe DL4S Profile with delivery or crew?+
Kudos AV can quote the equipment with delivery, setup and technical support where required. Send the event date, venue or location and quantity so the team can confirm the right hire format and availability.
What do you need to quote the Robe DL4S Profile?+
Send the dates, venue or delivery location, quantity, and how you intend to use it. If you have a preference for dry hire or on-site support, include that too; the team will confirm the available hire format and quote.
