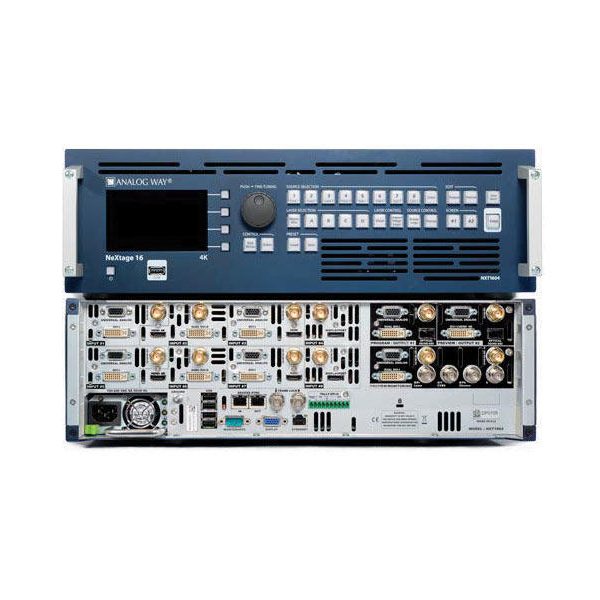

Analog Way NextAge 16 (Livecore)

Image Processing


  • NXT1604
  • 8 seamless inputs and 28 input plugs
  • Independent Preview/Mosaic/Monitoring output
  • Full live Preview of all sources (Preview/Mosaic/Monitoring)
  • 4 true-seamless scaled layers + 1 native background layer
  • Advanced Layer ManagementRotation capability in output (step by 90 degrees)
  • User-friendly and intuitive Graphic Interface
  • 8 seamless Inputs and 28 input plugs
  • 4 x HDMI
  • 6 x DVI-I (2 DVI Dual-Link included)
  • 2 x DisplayPort (4-Lanes)
  • 8 x 3G/HD/SD-SDI
  • 8 x UniversaI Analog (4 x HD15 & 4 x DVI-A)
  • 2 Outputs with 5 output plugs
  • Universal Analog (HD15 & DVI-A)
  • DVI-I (DVI Dual-Link available on output #1)
  • 3G/HD/SD-SDI
  • Video Optical SFP module cage
