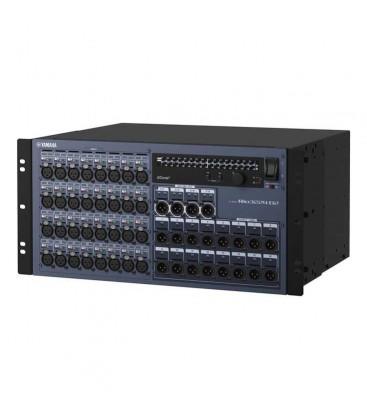

Yamaha – Rio 3224-D

£100

£300

Sampling Frequency Rate: 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0%
Signal Delay: Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
Total Harmonic Distortion: Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs=44.1kHz, 48kHz / Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs=88.2kHz, 96kHz INPUT to OUTPUT, Input Gain = Min.
Frequency Response: +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz / +0.5, -1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz
Dynamic Range: 108dB typ., INPUT to OUTPUT, Input Gain = Min
Hum & Noise Level: Equivalent input noise -128dBu typ., Equivalent Input Noise, Input Gain=Max
Residual Output Noise: -88dBu Residual output noise, ST master off
Crosstalk: -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min.
