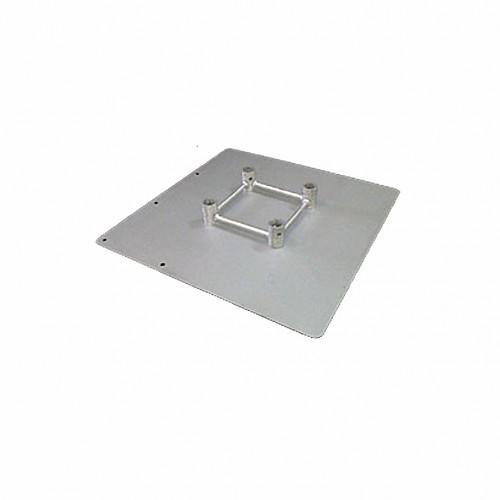

Prolyte X30V Truss Base Plates

Tank Traps & Baseplates


  • For use with X30V truss
  • Can be placed in three positions
  • Under test they have proved to be suitable for a maximum height of 3m and will take a load of 50kg straight down, 25kg directly on the side of the truss reducing down to 5kg at 500mm out (standard Doughty boom arm)
  •  765mm x 765mm x 30mm and weigh in at 60kg each
